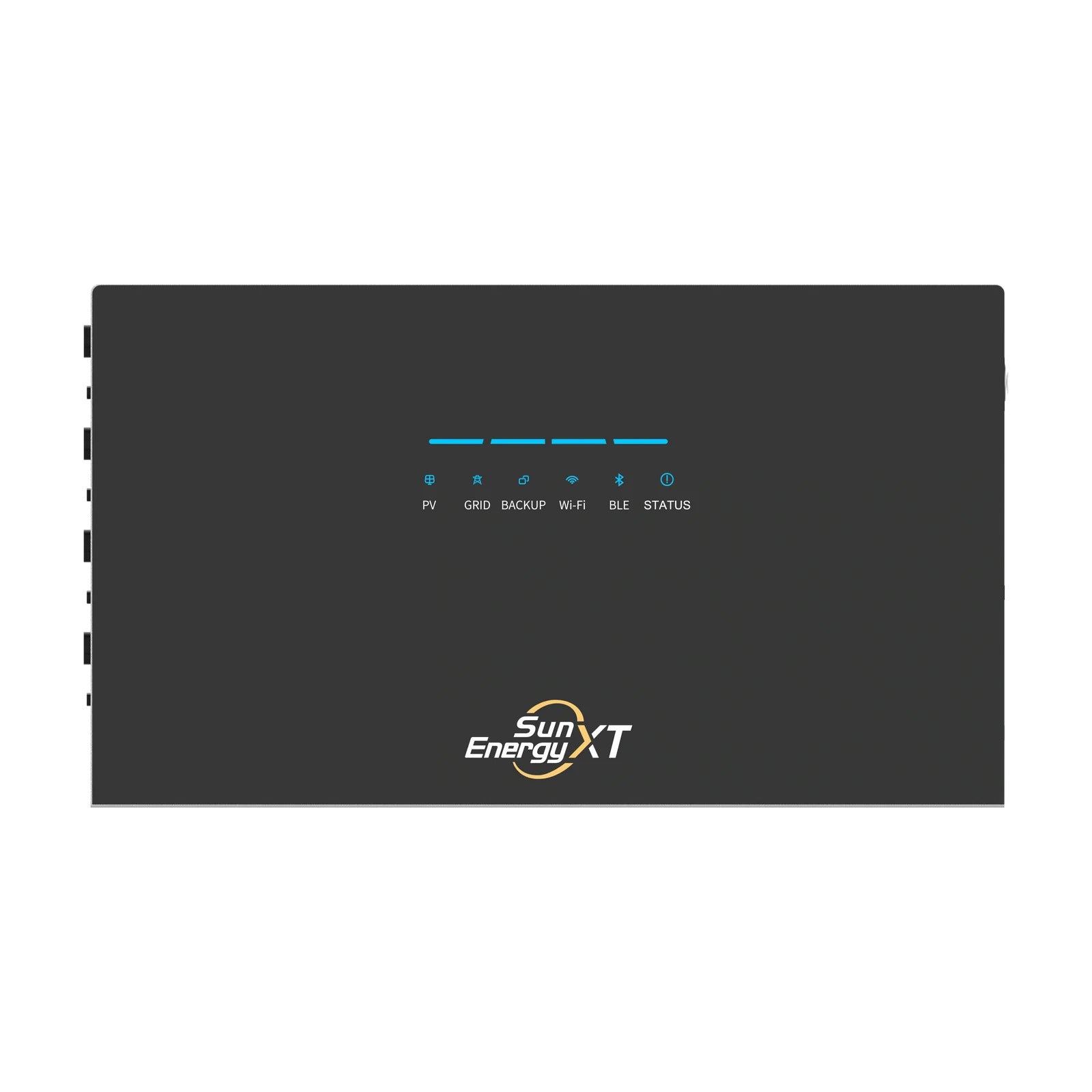

SunEnergyXT 500 PRO – Powerful 5 kWh Solar Storage with 2,400 W Feed-in and Emergency Power
The SunEnergyXT 500 PRO is the more powerful version of the 500 series and is aimed at demanding homeowners and larger photovoltaic systems. In contrast to the standard version, the PRO has an AC feed-in capacity of up to 2,400 W, allowing significantly higher self-consumption rates to be achieved. Installation is carried out by a qualified electrician.
With a usable capacity of 5 kWh, four powerful MPPT inputs and an integrated 2,400 W UPS emergency power supply, the storage unit offers maximum flexibility for modern energy systems.

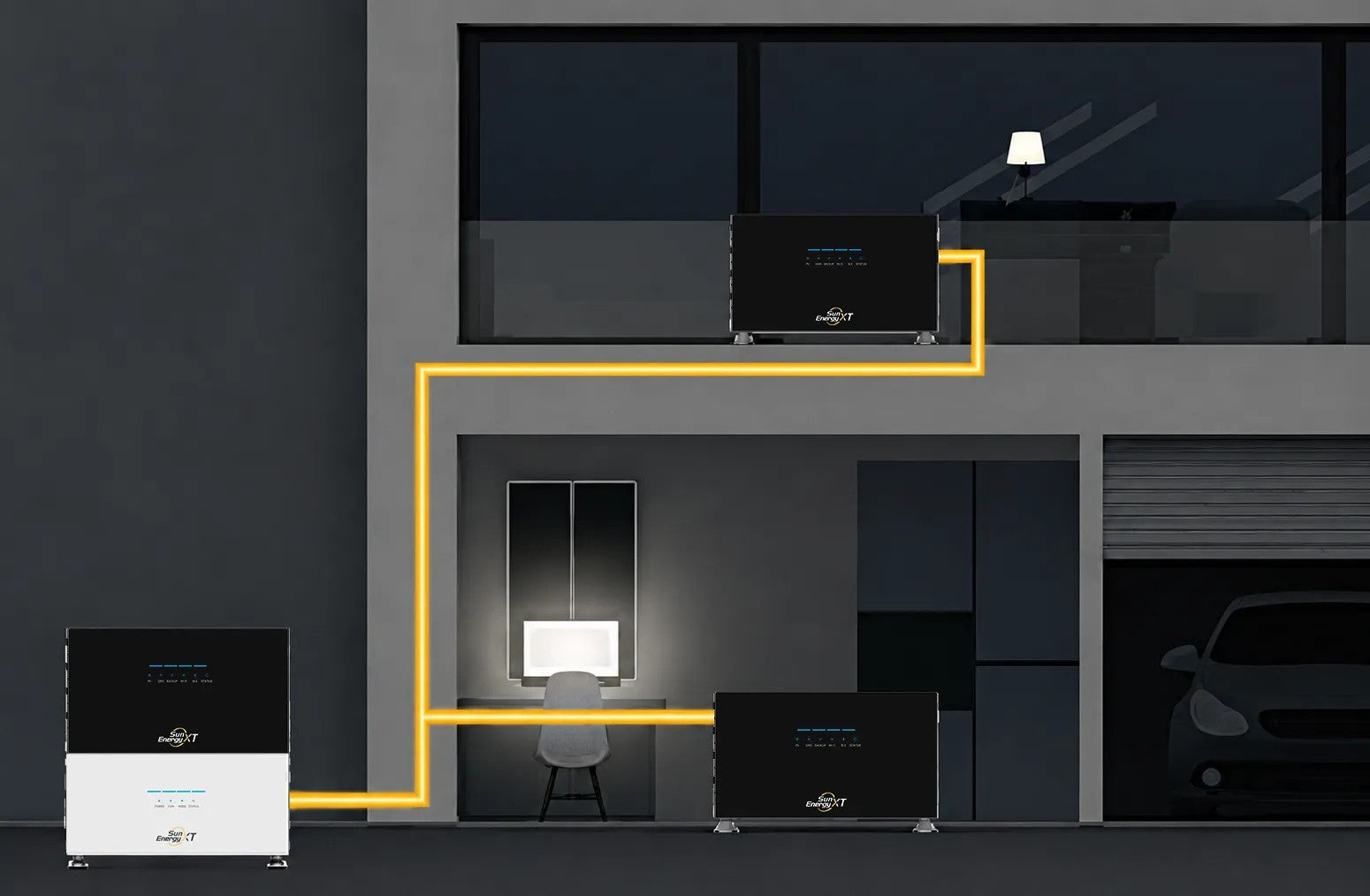

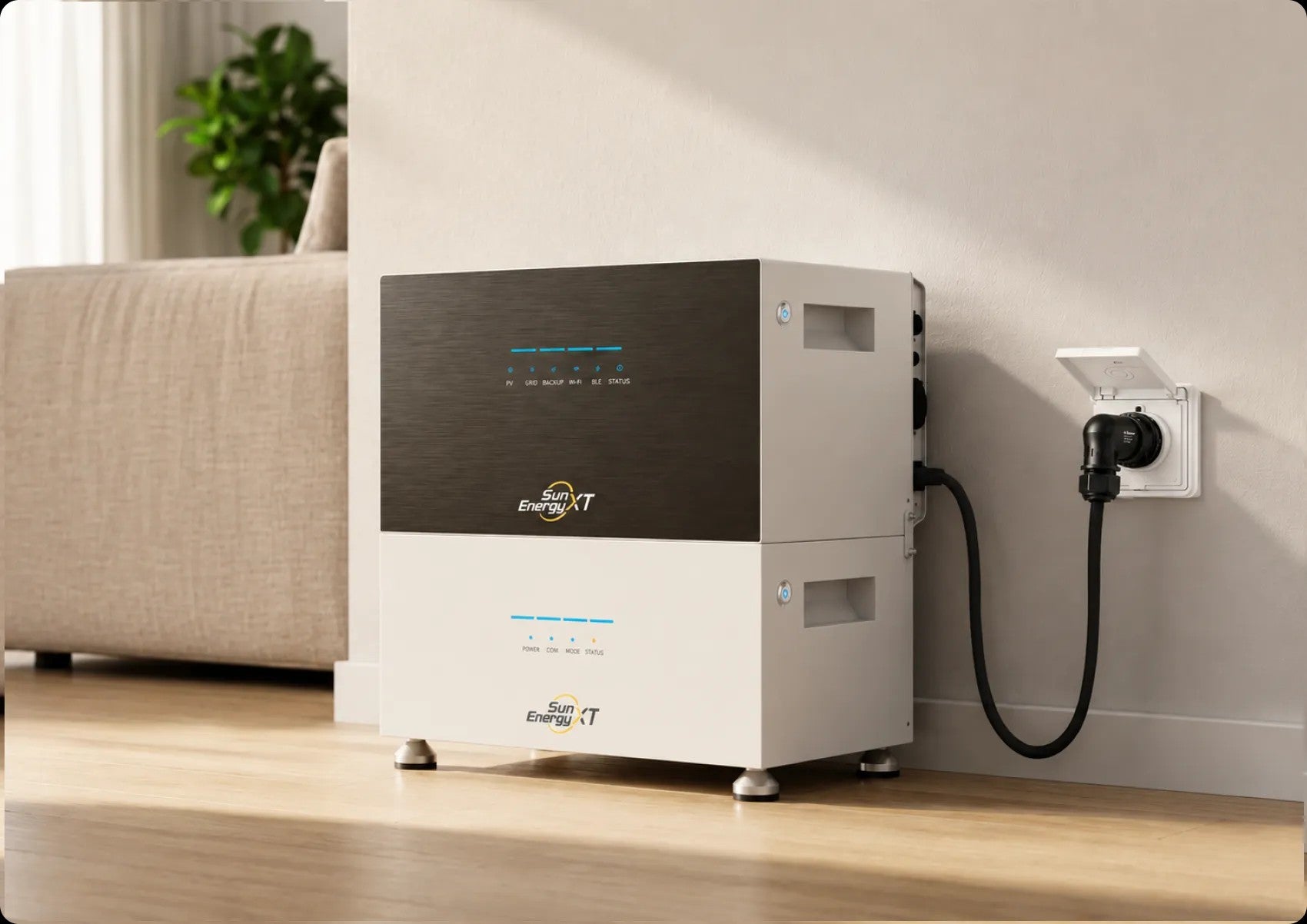

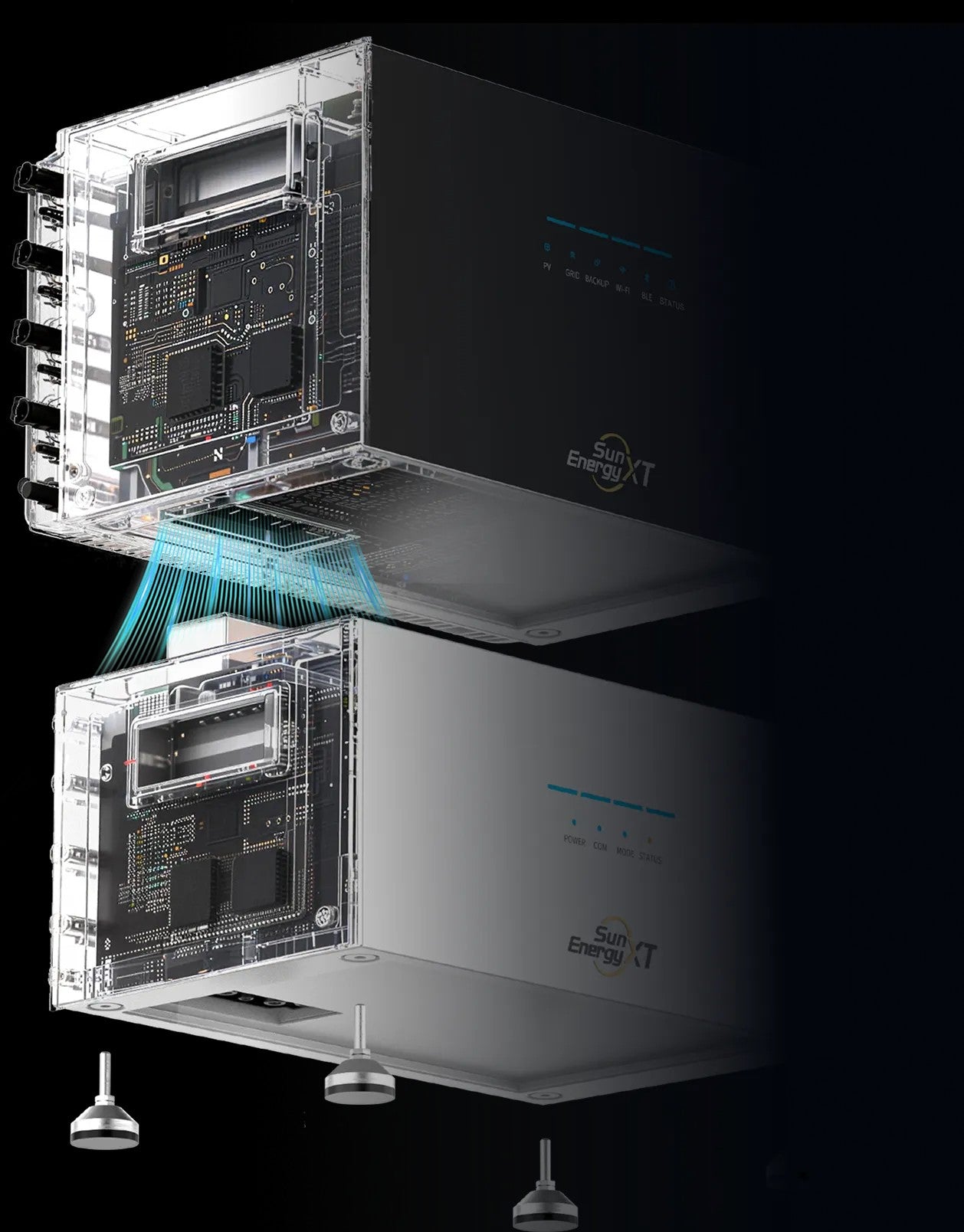

The modular concept allows the combination of several main units and additional battery storage units. This way, the system grows flexibly with your requirements – from classic self-consumption optimization to a powerful home storage unit with high emergency power output.

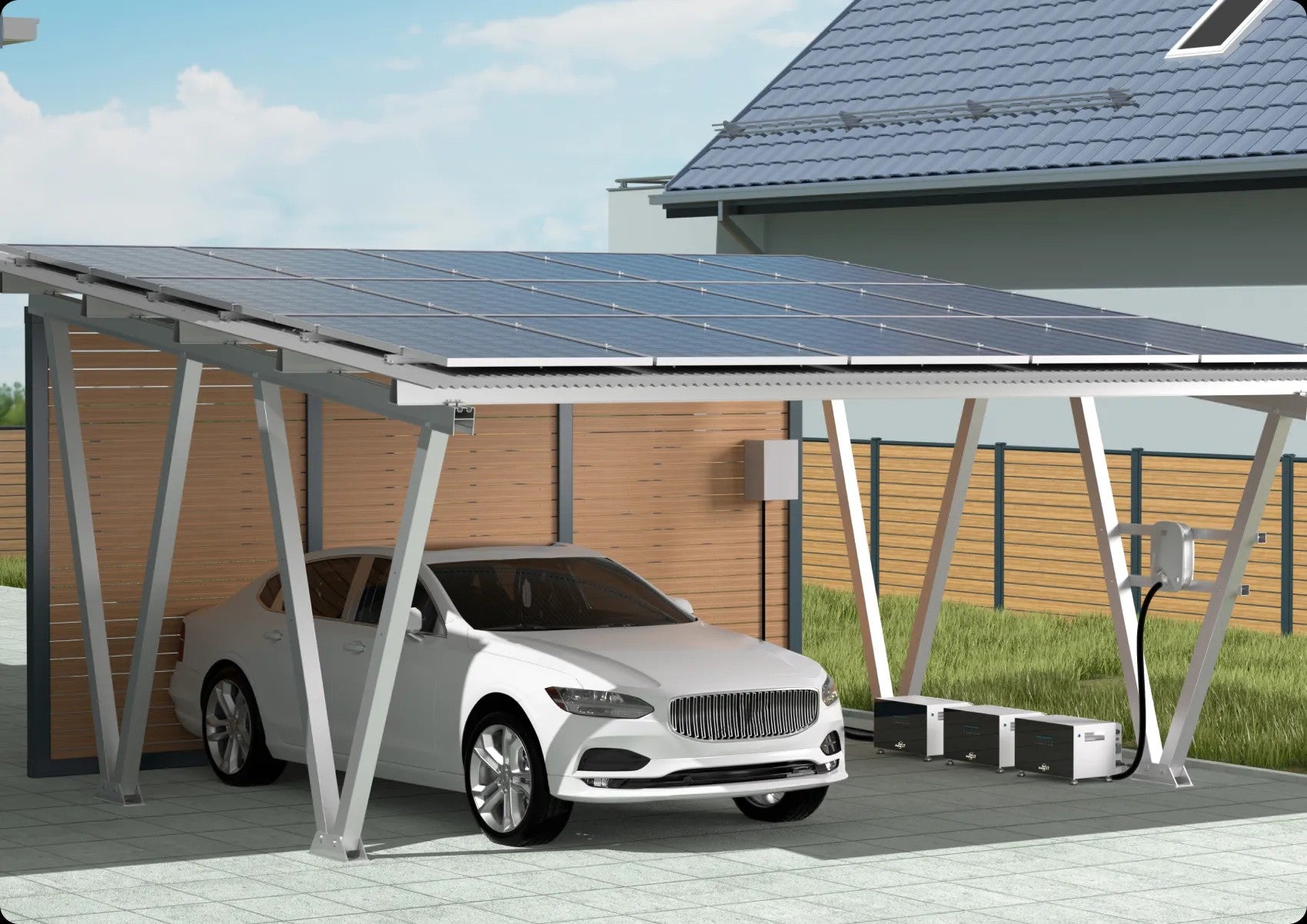

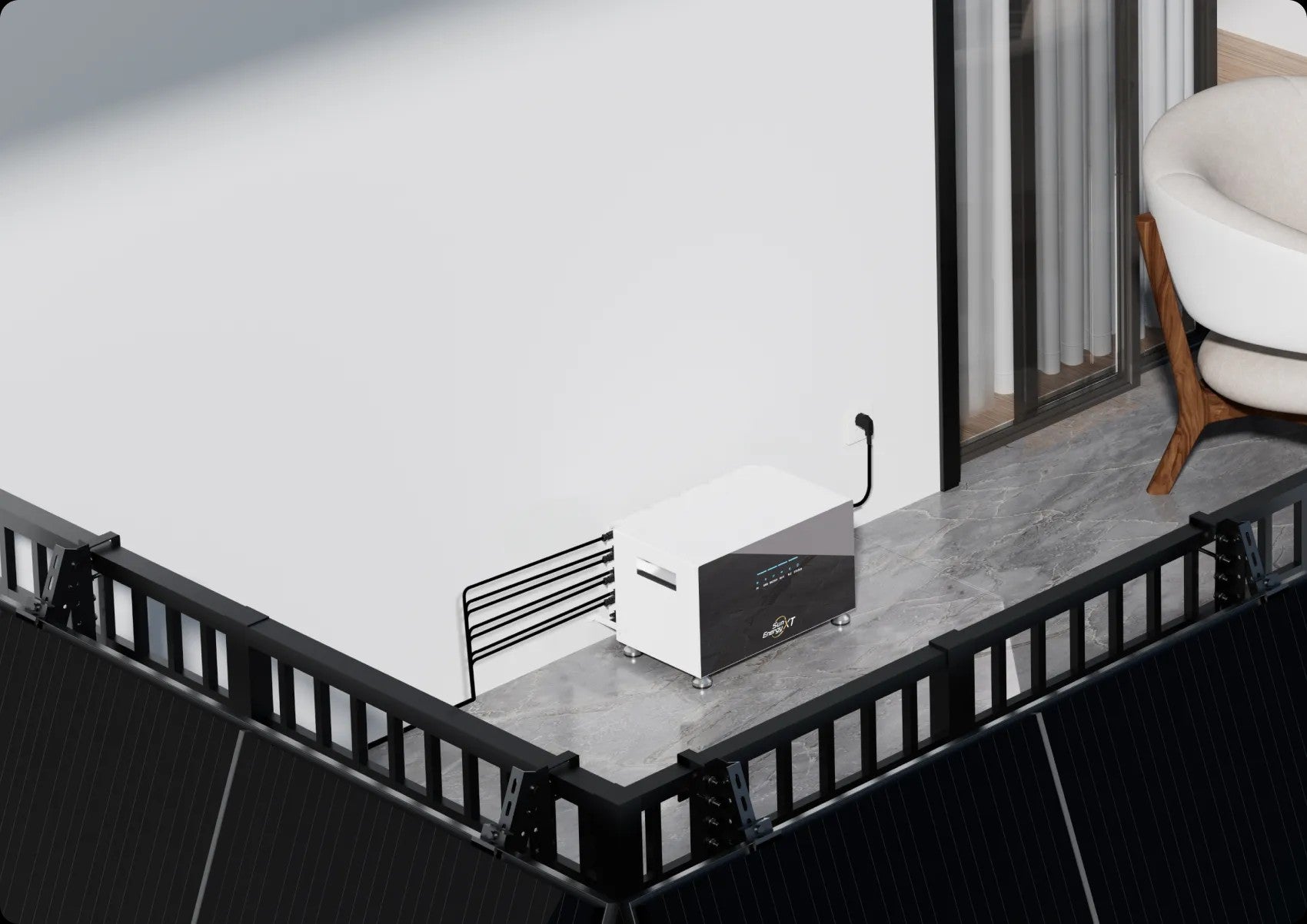

Four MPPT trackers with up to 625 W each ensure optimal utilization of the connected solar modules. Thanks to IP65, integrated battery heating, and passive cooling, the storage unit operates reliably at temperatures from -20 °C to +55 °C.

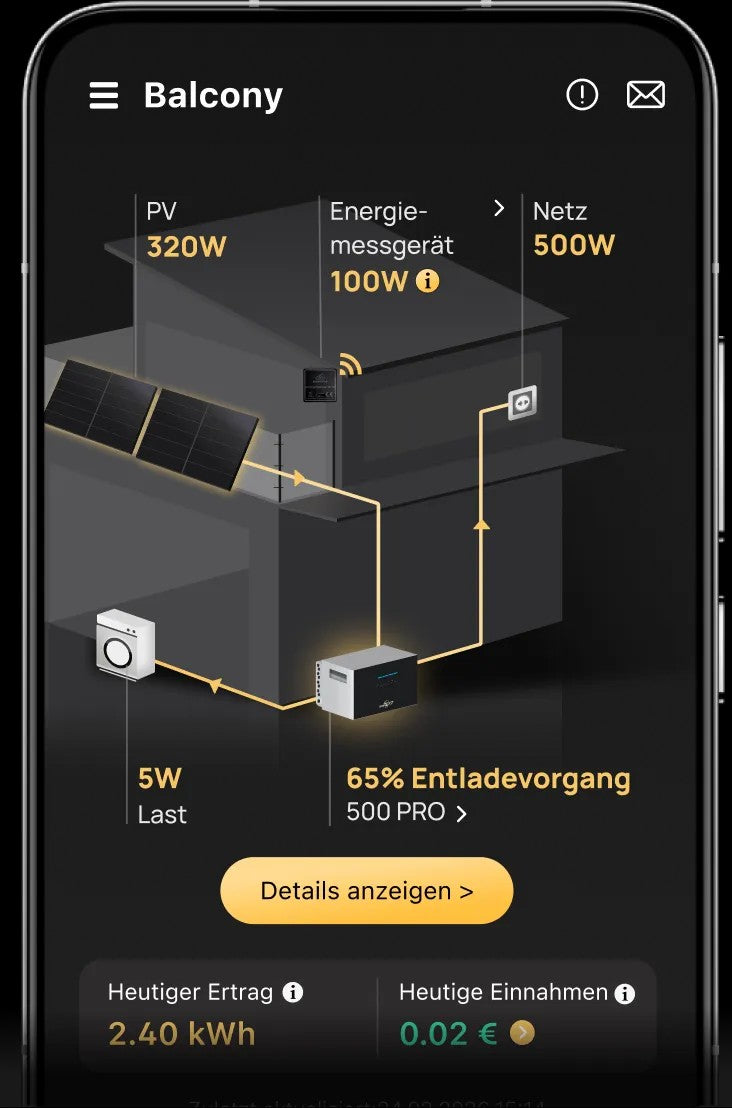

The SunEnergyXT app enables real-time monitoring, firmware updates, and intelligent zero feed-in. Additionally, a local API, Home Assistant support, and the integration of Shelly, EcoTracker, and bitShake smart meters are available.
Highlights
- 5 kWh LiFePO₄ storage
- 2,400 W AC feed-in

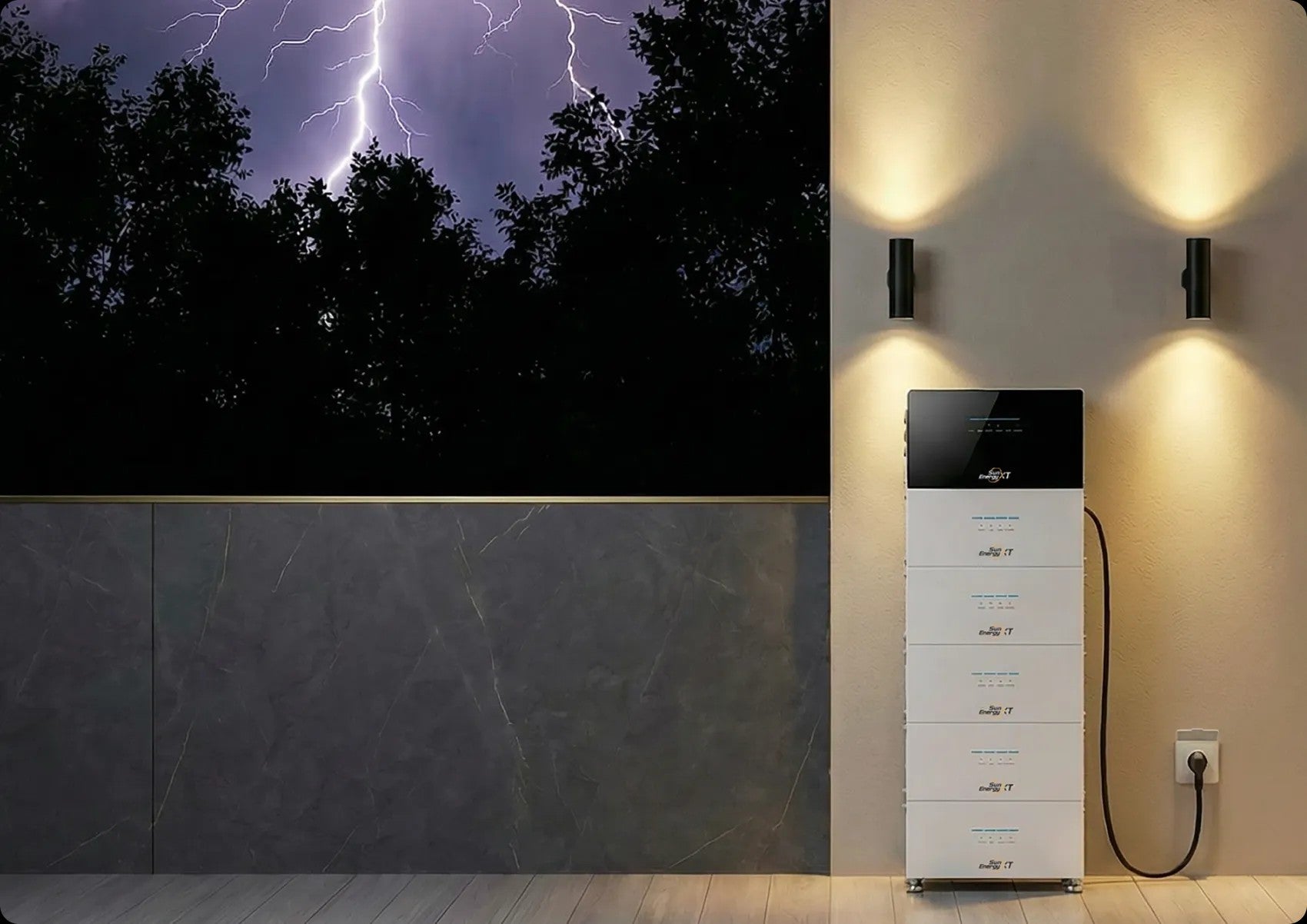

- 2,400 W emergency power supply
- Four MPPT inputs with up to 2,500 W PV power
- Up to 10,000 charging cycles
- UPS switching ≤10 ms

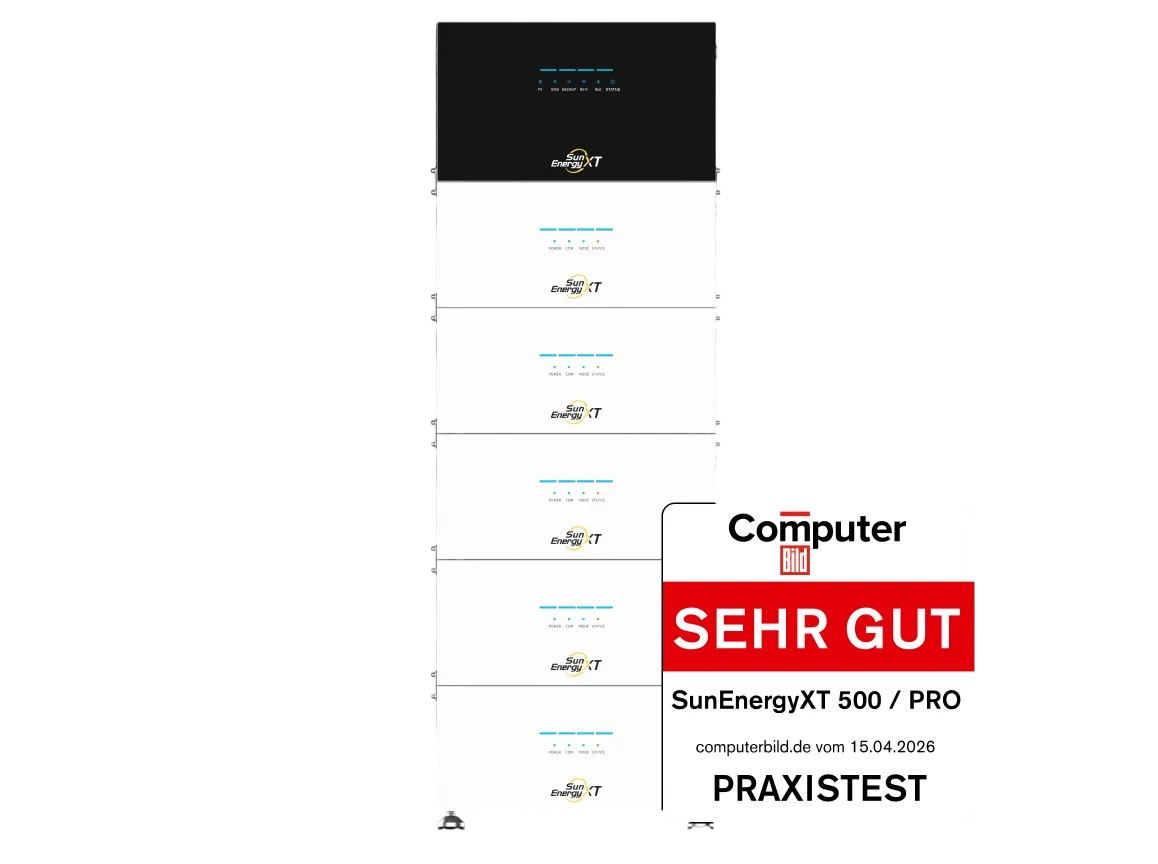

- Expandable with additional storage modules and main units
- Home Assistant compatible
- Local API without cloud dependency
- Compatible with Shelly 3EM, Shelly Pro 3EM, EcoTracker, and bitShake
- Automatic battery heating
- Protection class IP65
- 10-year manufacturer's warranty
Technical Data
- Usable storage capacity: approx. 4.8 kWh
- Battery technology: LiFePO₄
- AC feed-in: 2,400 W
- Backup output: 2,400 W
- PV inputs: 4 × MPPT
- PV power: 4 × 625 W
- Max. DC voltage: 100 V
- MPPT voltage range: 20–60 V
- Protection class: IP65
- Communication: WLAN
- UPS switching: ≤10 ms
- Weight: 58 kg

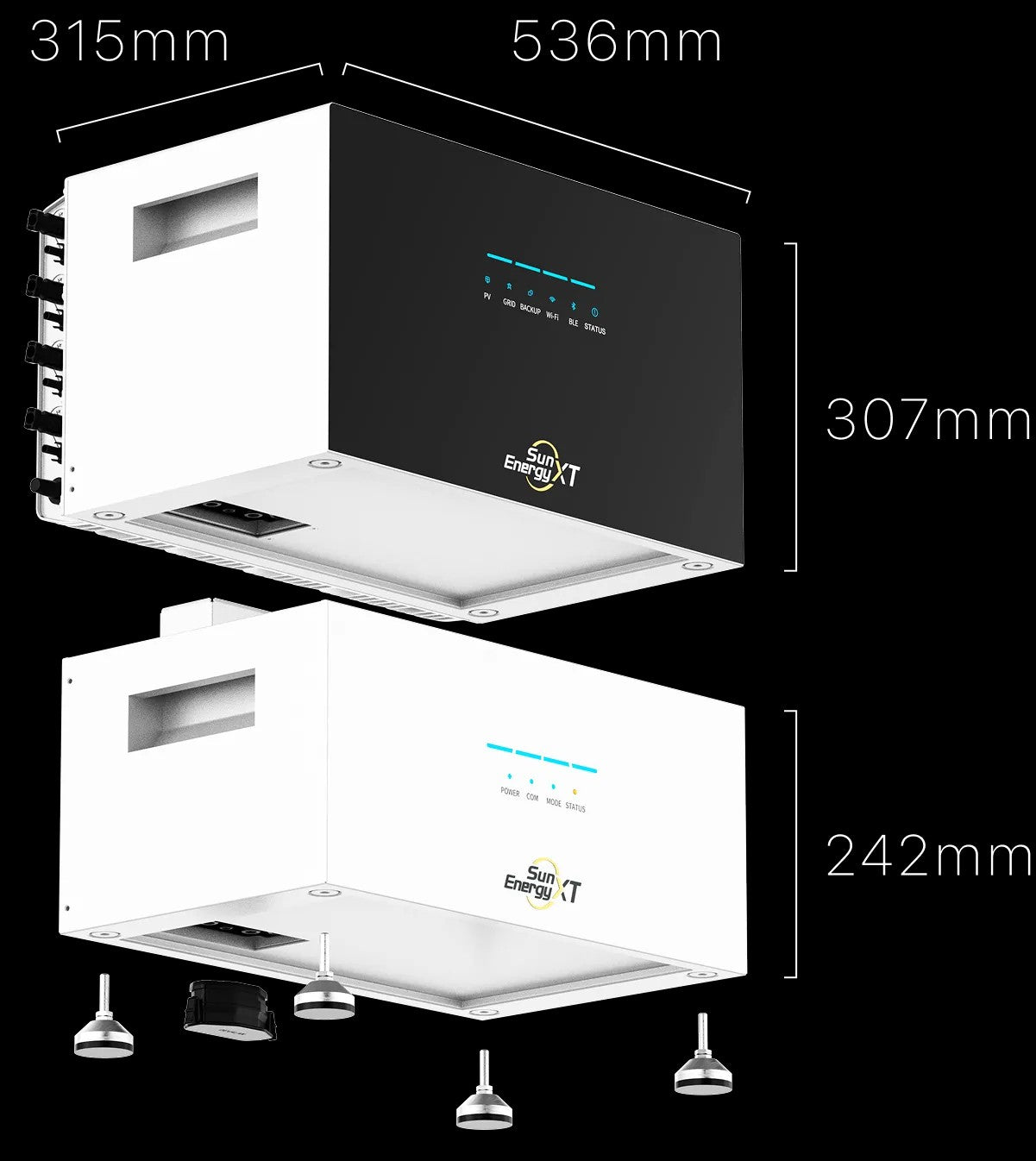

- Dimensions: 536 × 315 × 307 mm
