Open to Developers and Makers
Protocol
In addition to the established RaceBox protocol, the RaceBox Micro also supports the NMEA standard over BLE. This extends compatibility to a wide range of existing applications. Ideal for developers and tech enthusiasts, this expands the device's utility and ease of integration. To facilitate a smooth and straightforward introduction, comprehensive API documentation, including detailed guides and message examples, is readily available.
25Hz GPS
Equipped with the latest generation 25Hz GNSS receiver with accuracy up to 10cm (4 inches), this device delivers measurement precision exceeding 99.5% with hundredth-of-a-second accuracy, closely mirroring the results of official lap and drag timing equipment.
Standalone
The RaceBox Micro boasts integrated memory, enabling data logging of over 2 hours at a 25Hz sampling rate or more than 5 hours at 10Hz directly onto the onboard storage. This feature ensures ample space to track your performance without the need for an attached phone. Furthermore, a dedicated hardware button simplifies session management, allowing you to effortlessly start and stop recording without needing to connect to a mobile app.
The focus on DIY enthusiasts underscores our commitment to innovation, adaptability, and community-driven development, making the RaceBox Micro not just a tool for performance enhancement but a canvas for creativity and ingenuity in the hands of hobbyists and developers alike.

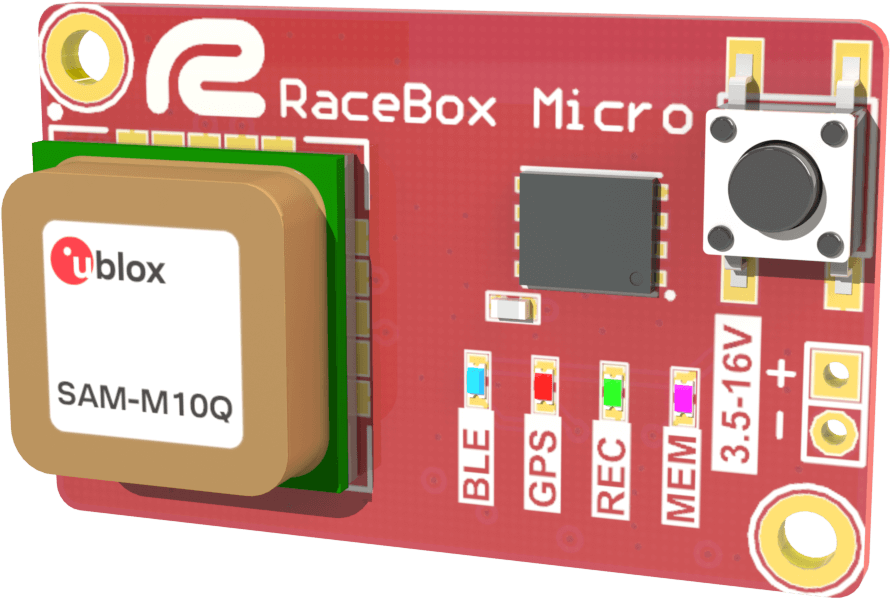

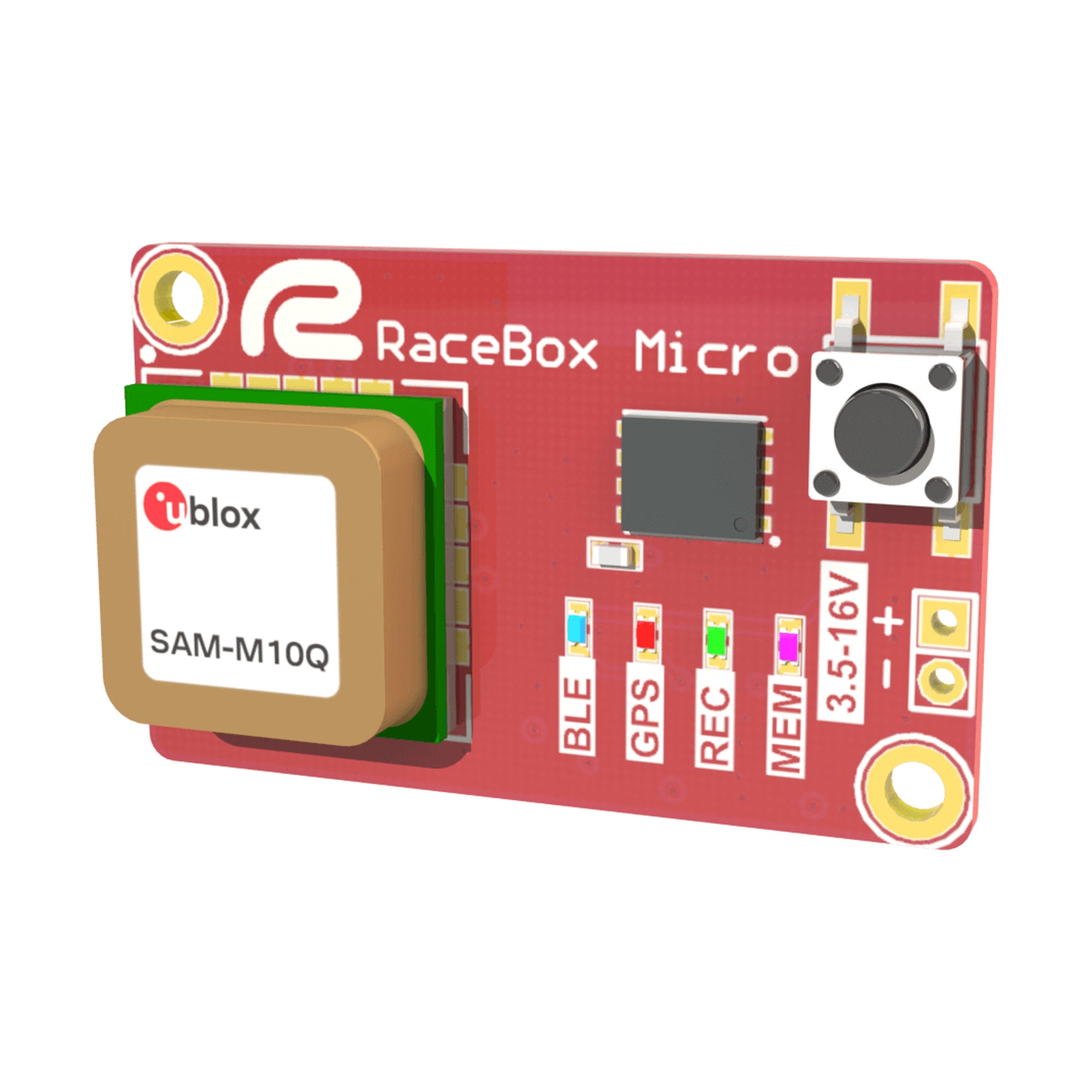

Bare Board Design
The RaceBox Micro is engineered as a bare-board device, significantly reducing its size and weight to just 15 grams. This ultra-lightweight design makes it incredibly versatile and unobtrusive, allowing for use on virtually any object without noticeable added bulk. Whether you're tracking small gadgets or large vehicles, its minimal footprint ensures that neither handling nor functionality is compromised.
Specifications:
- 25Hz GNSS module
Simultaneous tracking of GPS, Glonass, Galileo, Beidou, SBAS, QZSS - Bluetooth 5.2
Compatible with Android and iOS smartphones - 3.5-16V voltage range
20mA recording, < 1mA standby consumption - Small, light
25x40x12 mm, 15 gr
0.98x1.57x0.47 inches, 0.5 oz - High-precision accelerometer
+/- 8G range - High-precision gyroscope
+/- 320dps range - Internal memory for over 2 hours of data at 25 Hz (5 hours at 10 Hz)
- Start/stop standalone recording with one button press
