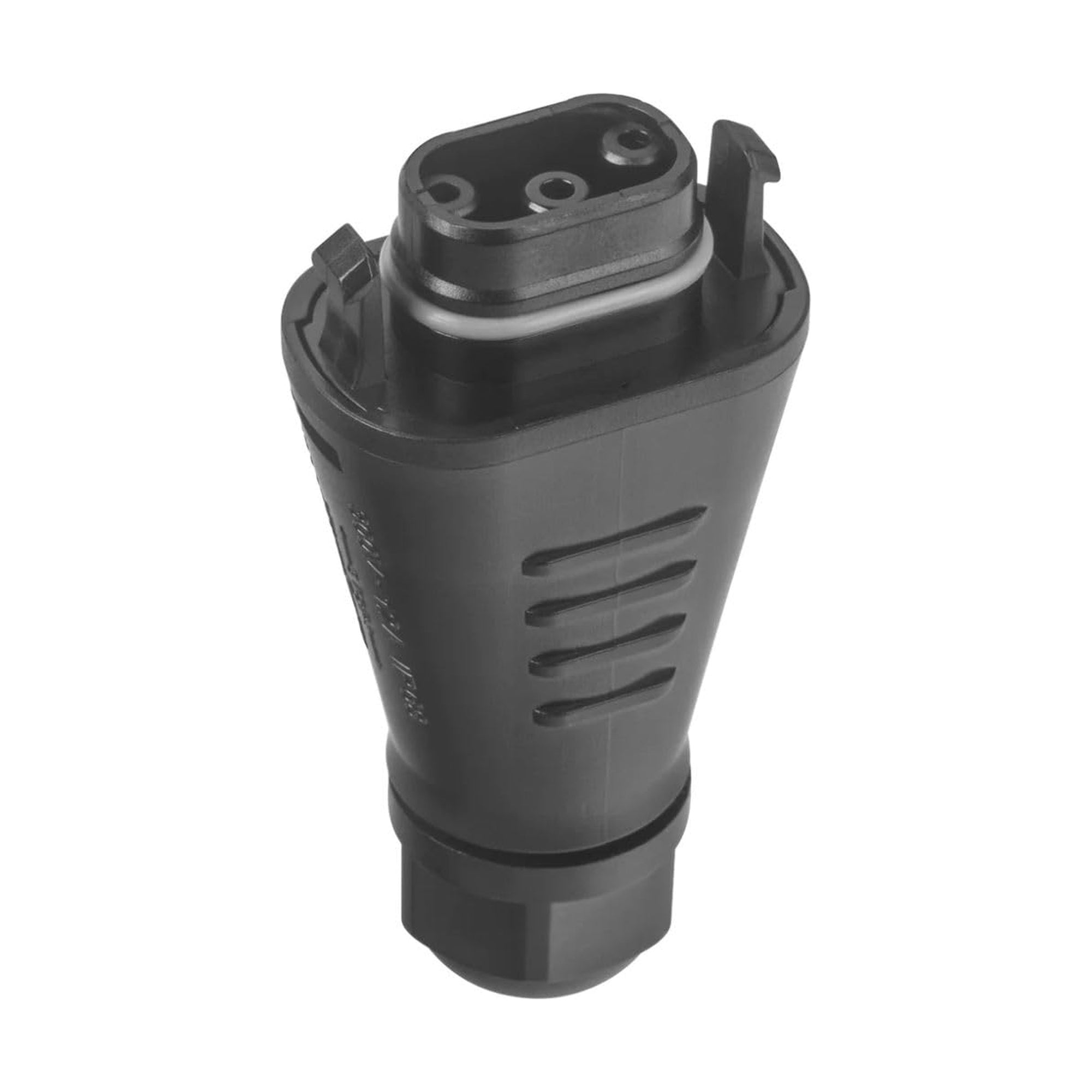

The Betteri BC05, also called AC trunk, is the AC power output connector for the Hoymiles HMS series microinverters. The HMS Field Connector / Betteri BC05 plug is required if you do not want to connect another inverter in series, but want to connect your Hoymiles HMS directly to your home socket and want to assemble the cable length yourself. The AC-Trunk / Betteri BC05 connection is UV-resistant, waterproof and suitable for outdoor use. It can be mounted with the Hoymiles HMS directly at the PV modules. The Betteri BC05 / AC-Trunk is single-phase and only suitable for the Hoymiles HMS series. It does not fit other microinverters of the HMT series.
| Type | Plug | ||
| Color | black | ||
| Manufacturer no. | BC05-BR3M-02 | ||
| Series | HMS | ||
| Usage | Connecting the Hoymiles HMS inverter to an AC cable | ||
| Quantity | 1 piece | ||
| Area | Power supply | ||
| Features | external | ||
| Feature | Protection class IP68 | ||
| Further information | Rated voltage 300V, rated current 12A (with 1.5mm² copper cable), possible cable outer diameter 8mm - 9.5mm, for cables 1.0mm² - 1.5mm² | ||
| Note | AC-Trunk is also called Betteri BC05 or BC05-BR3M-02 | ||
| Dimensions | Width: 38 mm x Height: 25 mm x Depth/Length: 135 mm | ||
